Frame without foot end shield with flange(V1)
For more information, please send an email or call our hotline
Frame without foot end shield with flange(V1)
For more information, please send an email or call our hotline

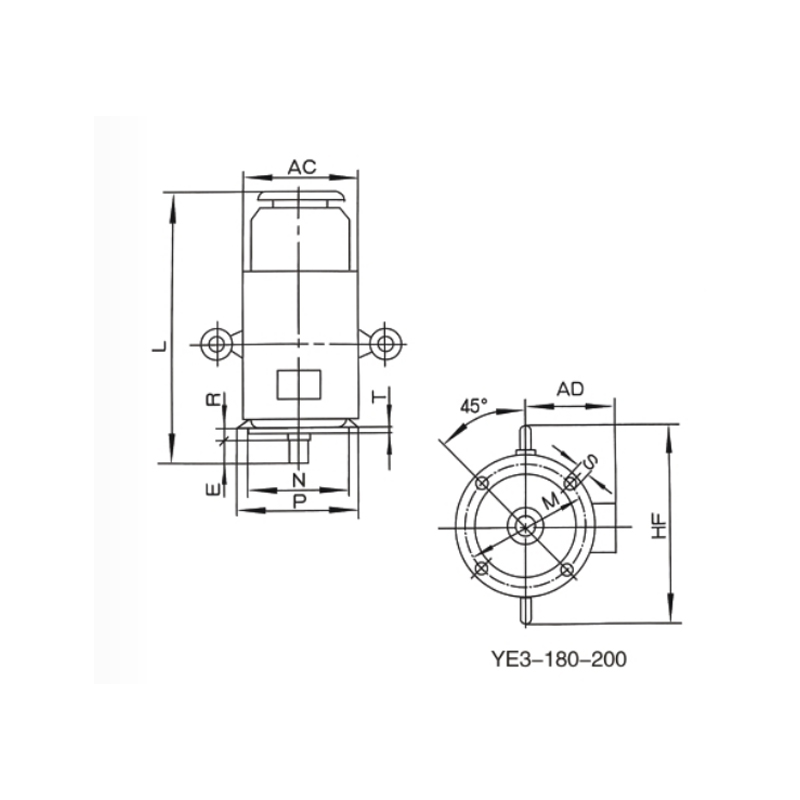

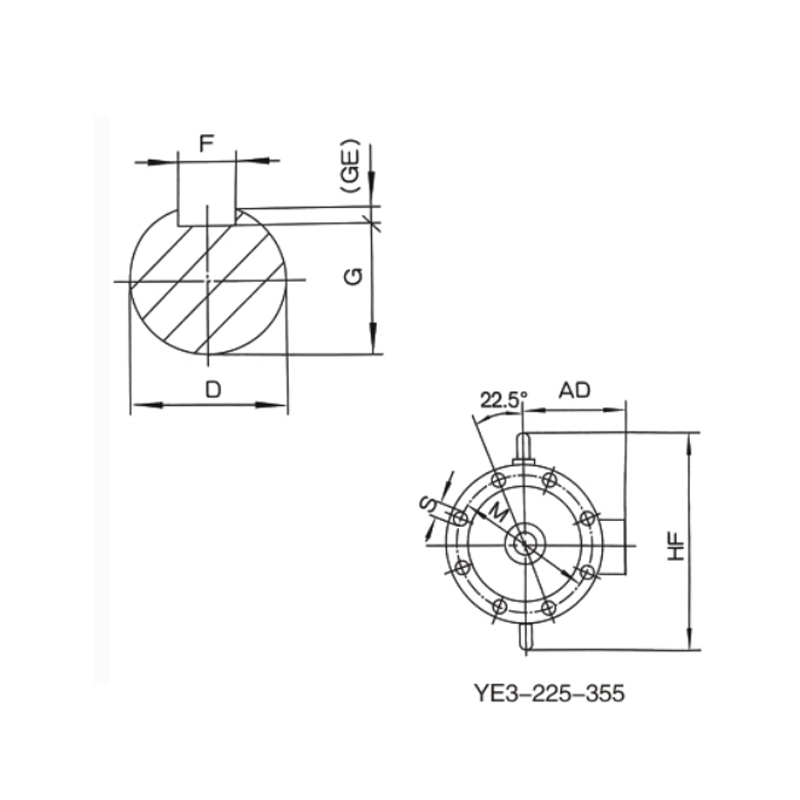

| Frame without foot end shield with flange(V1) | ||||||||||||||||
| Frame | Ploes | D | E | F | G | M | N | P | R | S | T | Holes | AC | AD | HF | L |
| 80M | 2.4.6.8 | 19 | 40 | 6 | 15.5 | 165 | 130 | 200 | 0 | 12 | 3.5 | 4 | 175 | 145 | / | 355 |
| 90S | 24 | 50 | 8 | 20 | 195 | 165 | 410 | |||||||||
| 90L | 440 | |||||||||||||||
| 100L | 28 | 60 | 24 | 215 | 180 | 250 | 14.5 | 4 | 215 | 180 | 245 | 485 | ||||
| 112M | 240 | 190 | 265 | 520 | ||||||||||||
| 132S | 38 | 80 | 10 | 33 | 265 | 230 | 300 | 275 | 210 | 315 | 560 | |||||
| 132M | 610 | |||||||||||||||
| 160M | 2.4.6.8 | 42 | 110 | 12 | 37 | 300 | 250 | 350 | 18.5 | 5 | 330 | 255 | 385 | 720 | ||
| 160L | 750 | |||||||||||||||
| 180M | 48 | 14 | 42.5 | 380 | 280 | 430 | 800 | |||||||||
| 180L | 850 | |||||||||||||||
| 200L | 55 | 16 | 49 | 350 | 300 | 400 | 420 | 305 | 480 | 860 | ||||||
| 225S | 4.8 | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 8 | 470 | 335 | 535 | 955 | |||
| 225M | 2 | 55 | 110 | 16 | 49 | 955 | ||||||||||
| 4.6.8 | 60 | 140 | 18 | 53 | 980 | |||||||||||
| 250M | 2 | 60 | 500 | 450 | 550 | 510 | 380 | 650 | 1020 | |||||||
| 4.6.8 | 65 | 58 | ||||||||||||||
| 280S | 2 | 65 | 580 | 410 | 720 | 1110 | ||||||||||
| 4.6.8 | 75 | 20 | 67.5 | |||||||||||||
| 280M | 2 | 65 | 18 | 58 | 1150 | |||||||||||
| 4.6.8 | 75 | 20 | 67.5 | |||||||||||||
| 315S | 2 | 65 | 18 | 58 | 600 | 550 | 660 | 24 | 6 | 645 | 530 | 900 | 1300 | |||
| 4.6.8.10 | 80 | 170 | 22 | 71 | 1450 | |||||||||||
| 315M | 2 | 65 | 140 | 18 | 58 | 1330 | ||||||||||
| 4.6.8.10 | 80 | 170 | 22 | 71 | 1450 | |||||||||||
| 315L | 2 | 65 | 140 | 18 | 58 | 1330 | ||||||||||
| 4.6.8.10 | 80 | 170 | 22 | 71 | 710 | 655 | 1010 | 1450 | ||||||||
| 355M | 2 | 75 | 140 | 20 | 67.5 | 740 | 680 | 800 | 1640 | |||||||
| 4.6.8.10 | 95 | 170 | 25 | 86 | 1670 | |||||||||||
| 355L | 2 | 75 | 140 | 20 | 67.5 | 1640 | ||||||||||
| 4.6.8.10 | 95 | 170 | 25 | 86 | 1670 | |||||||||||
